CSW62: Ultra Wide bandwidth HDTV switch & amp with DC restoration

CSW62: Ultra Wide bandwidth HDTV switch & amp with DC restoration

Model CSW62            Accepts any Remote Control

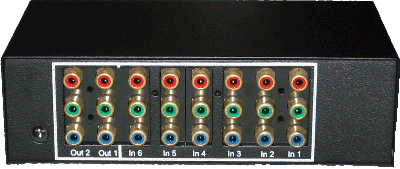

Back panel image

This product integrates a professional grade component video switch, an active DC level correction circuit, and an ultra wide bandwidth distribution amplifier.  CSW62 is designed and tested to pass all video signals up to and including 1080p.  The most common application for this device is shown below.

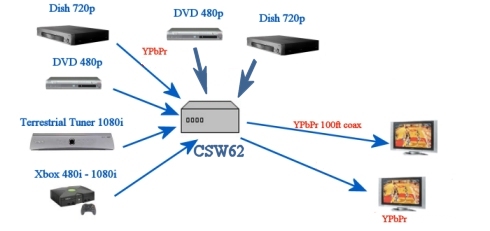

Switching 6 sets HDTV to 2 displays or storage devices

The CSW62 can also support the following applications

  • Switching 6 sets digital audio + composite video to 2 receivers
  • Switching 6 sets HDTV to 2 inputs of certain TVs to support both 480i & hdtv  (useful with xbox)
  • DC level correction and video distribution over long cables to 2 receivers

The CSW62 is the optimal solution for all these applications because it is built with the best high performance video amplifiers.  The specs speak for themselves, this unit delivers ultra clean noise performance and more bandwidth than needed for all high definition video standards.  The CSW62 is also the easiest component switch on the market to setup and use.  Our proprietary ZeroKey technology allows our device to be controlled by any key on any remote.  No need for separate remotes or remote programming.

All existing analog video formats including HDTV can be handled by this amplifier.

View independent reviews of this product on toast forum

View test results for this product

DC level restoration

CSW62 contains an active DC level restoration circuit.  In fact, this product is the only affordable switch on the market to employ this high end technology!  The circuit will restore the DC levels on the output video to the proper specification levels regardless of what is present on the input.  Why is this important?

Video distribution

CSW62 is the ideal amplifier for driving long video cables in your home.  Many vendors claim their products can do this, but very few can accomplish this without distortion of the video.  The most important amplifier design factors in driving long cables are source impedance matching, output connector quality, amplifier bandwidth, and amplifier current drive and slew rate.  Our amplifier uses the best components for all these, resulting in the best signal distribution you can get.  If you are interested in video distribution, please see our information page for more tips on optimizing your network for zero distortion.

ZeroKey technology

The CSW62 switch can be controlled manually by toggle button, or by remote control.  The remote control interface uses ZeroKey infrared code cloning to map any remote control key to each one of the four inputs.  Here are the steps to program the CSW62 for your remote.

  1. Press the toggle button to select the input you would like to train
  2. Hold the toggle button for 6 seconds and release
  3. The LED indicator for the selected channel will now flash continuously, this means it is ready to be programmed
  4. Aim your remote control at the CSW62 and press the key you would like to use to select this input
  5. The LED indicator will stop flashing, this means the code has been stored.
  6. Repeat for the other inputs

ZeroKey technology is compatible with virtually all remote controls, and does not interfere with the normal operation of the remote.  The best way to use this is to program the CSW62 with the same keys you normally push to switch your AV receiver or TV.  The CSW62 will switch at the same time as your TV or receiver without the need for complicated macros or pushing extra buttons!

ZeroKey programming is stored in flash memory, and you will not need to reprogram even if you lose power.  If you buy a new remote in the future, don't worry, the CSW62 can be reprogrammed as much as you like.

Unit includes:

  • CSW62 component switch & distribution amplifier as pictured
  • 18 inputs, 6 outputs  (Inputs: 6 switched sets of 3; Outputs: 2 sets of 3)
  • 9V wall power supply
  • 3 year warranty


  • 18 inputs
        75Ohm terminated at all frequencies
        Gold plated matched low impedance RCA jacks
        1Vpp nominal input swing (Ypbpr) or 1.3Vpp (Cvbs)   2.5Vpp maximum
        Crosstalk < -80 dB
  • 6 outputs
        Source impedance 75 Ohms
        Gold plated matched low impedance RCA jacks
        DC restoration for maximum compatibility
        High performance amplifier capable of driving over 100ft of coax per output
        Noise spectrum > 60 dB
        -3dB bandwidth > 100 Mhz
  • Internal design
        Flash programmable micro controller enables ZeroKey remote technology
        Ultra wide bandwidth t-switches prevent crosstalk or signal distortion
        High quality video amplifiers for best performance
        High reliability capacitors and self resetting fuse protection for long life
        Designed and manufactured in the USA

  • Housing
        Black powder coat aluminum housing   8.25" x 4.25" x 2.5"

Online manual (word document)



Quantity Pricing
Price: $159.99
