NBX022: Single or Dual Channel NetPlay Audio Player **LIMITED STOCK**

NBX022: Single or Dual Channel NetPlay Audio Player **LIMITED STOCK**

Single or dual channel NetPlay audio player **LIMITED STOCK**

Model NBX022

People have audio spread out everywhere these days; on their phones, iPods, tablets, PC music libraries, in (several different) clouds, internet radio, cable boxes.  Don't deal with the hassles of consolidating and constantly synching all these, just make sure they can all play when needed. Video Storm's NBX022 makes it easy to integrate all these sources into simple single user interface.  Take your audio system to the next level with NetPlay Audio from Video Storm.

Netplay Audio allows you to easily add these popular services to your project:

  • iOS, Android, and Windows (mobile & desktop) direct audio streaming
  • Pandora, TuneIn, GoogleMusic, Spotify, Slacker, Last.fm, Sky.fm, and many more audio services
  • Integrated music library (including iTunes) via integrated Logitech Media Server (no PC needed)
  • Cloud based music library support
  • Full hi-res cover art and metadata for all your music regardless of source
  • Complete integration in Control4, RTI, Savant, and more

NBX022 features
NBX022 is our smallest NetPlay Audio standalone player.  Please click each feature for detailed descriptions.

Demo videos
Videos showing NetPlay Audio in different system integrations.

Control solutions
Fully integrated in Control4, RTI, Savant, and more.  Full list of drivers.

Optional USB accessories
  • WiFi adapter:  Enables wireless ethernet connection
  • USB audio digital extender:  Professional quality audio extender with stereo, coax, and toslink outputs (for 2nd stream output)
  • USB external hard drive (for AV libraries if you don't use NAS)

Special NOTE:
We are continuously improving and adding capabilities to this product through new internal and 3rd party software.  All new features can be easily enabled by running our web updater and then selecting the desired features through the web config interface.  Some features on the website may be work in progress, and other new features may not be shown here.  Here is the latest NetPlay feature support matrix.

Unit includes:

  • NBX022 network audio player with 1 year warranty
  • 5V power supply with 30 day warranty


  • Digital audio renderer (playback) device
       Multi format and multi standard digital audio streaming from network sources
       Digital volume for all outputs
       Professional quality stereo analog audio output via 3.5mm RCA jacks
       Professional quality digital audio via HDMI
       Consumer quality stereo analog audio via 3.5mm (for 2nd stream)
       1080p HDMI output for cover art
       Automatic discovery via Upnp/Bonjour/others
  • Digital audio players
       Plays music/audio from network storage or internet sources
       Configuration by web interface, telnet, or RS232
  • Ethernet control
       Fully configurable, supporting all commonly used options
       Stable and reliable Linux networking stack
       DHCP or static addressing
       Control socket via Web page, Telnet, or SSH
       Control4 SDDP support
       Automatic discovery via Upnp/Bonjour/others

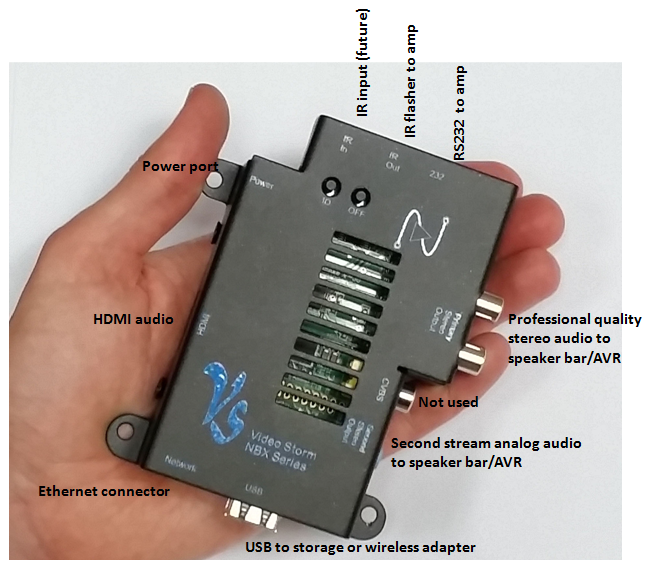

  • USB Host port
       Used for expansion, such as wireless, Mic input, Bluetooth, etc
  • Power
       Micro USB port for power, require 700mW (3.5W max)
       Designed to use either the USB port on the TV OR USB wall charger for power
  • RS232
       Ethernet to RS232 functionality
       RS232 port via 3.5mm stereo jack
  • Infrared
       Infrared input via 3.5mm jack (compatible with optional 3.3V IR receiver)
       Infrared input can be sent to external controllers via ethernet
       Infrared output via 3.5mm jack (compatible with optional 3.3V IR blaster)
       Infrared output can be controlled by external controller via ethernet
  • Flexible, open platform
       Linux based system which allows easy addition new 3rd party audio players/codecs
  • Enclosure
        Professional black steel enclosure
        VESA mounting holes
        Small enough to easily mount behind TV:  4.3" x 2.4" x 1"
        Designed and manufactured in the USA
  • Internal design
        High speed ARM processor with hardware accelerated AV datapath
        Linux operating system with 8GB of removable flash storage
        Fully digital datapath

NBX is only available through authorized dealers

NetPlay Protocol manual (pdf document)

Setup instructions

Dealers please login first and then CLICK HERE to order

List Price: $599.00
Price: $399.00
