TMXRX:  TMX series audio/video/IR balun
Product ID: TMXRX
TMXRX: TMX series audio/video/IR balun

TMX series RX balun

TMXRX is the receiver CAT5E balun for use with the TMX89 or TMXCXP.  This integrated balun is capable of simultaneously receiving HD component video, digital and analog audio, forward and back channel IR, power, and control over a single cable.  No external power or ground connections are typically needed!  TMXRX provides an excellent low profile and attractive installation solution.

TMXRX is available in a small surface mount enclosure for attaching to the rear of flat panel TVs.



The TMXRX has the following features

  1. Output sets (received from CAT5E cable)
    • HDTV component video
    • Digital audio Coax / RCA
    • Digital audio TOSLINK / Optical
    • Analog audio R/L
    • IR output to control the display or other equipment (forward channel)
    • IR input to be sent back to TMX89 (back channel)
  2. Optional local power / ground connections (for very long cables)
  3. Optional control connection to TMXCP touch screen panel
  4. Flash based micro controller which allows firmware updates
  5. Automatic or manual digitally controlled line equalization

Unit includes:

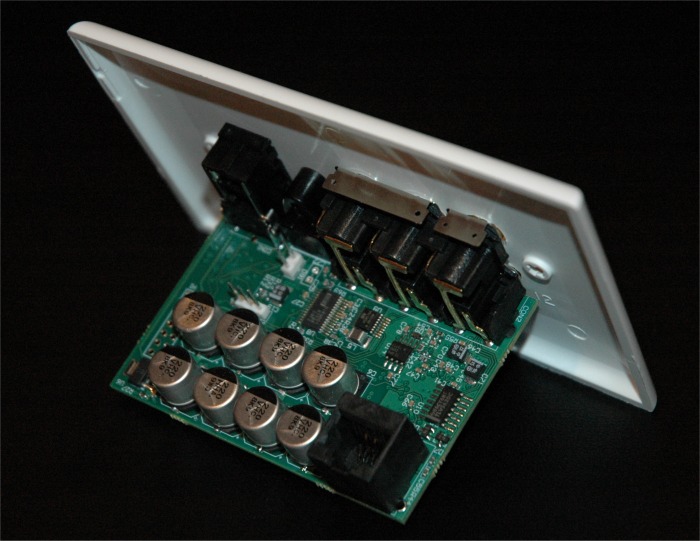

  • TMXRX HD balun as pictured
  • Surface mount housing
  • 3 year warranty

Specifications:

  • Local RCA output
       Component video output
         Source impedance 75Ohm
         Gold plated matched low impedance RCA jacks
         2V/V gain to properly drive output load termination (zero effective gain at display)
         -3dB bandwidth > 100 Mhz
       Digital audio RCA output
         Source impedance 75Ohm
         Gold plated matched low impedance RCA jacks
         2V/V gain to properly drive output load termination (zero effective gain at display)
         Can be sourced from any PCM or analog audio input
       Digital audio TOSLINK output
         Optical digital audio inputs have built in shutters, no plugs needed
         Can be sourced from any PCM or analog audio input
       Analog stereo audio output
         Source impedance 600Ohm
         Gold plated matched low impedance RCA jacks
         Full DSP volume control
         THD+N < 0.0004%
  • IR output (forward channel IR)
         Modulated IR for connection to standard IR flasher
         3.3Vpp nominal input swing, normally high
  • IR input (back channel IR)
         For connection to 5V powered IR detector
         5Vpp nominal input swing, normally high
  • Internal design
        Flash programmable micro controller
        Independent professional quality video amplifiers for best performance
        High reliability capacitors and self resetting fuse protection for long life
        Designed and manufactured in the USA

  • Housing
        1.25" x 2.5" x 3.25" surface mount housing

Online manual (word document)    Installation guide (word document)
