4 input, 2 output HDMI matrix switch with discrete digital audio outputs

Model HMX42           Connects to any CMX switch for integrated control!

Back panel image

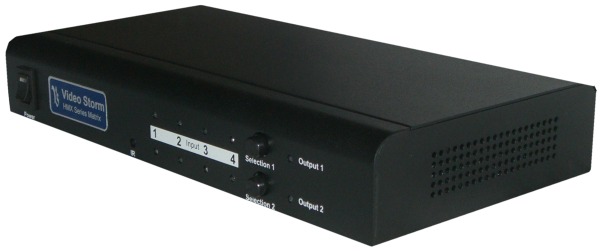

The HMX42 is a true HDMI matrix switch, meaning both outputs can select from any of the inputs independently.  You can display the same or different inputs on each output.  It also supports discrete digital audio outputs which allow much easier connection to your home theater receiver.

HMX42 is fully compatible with both HDCP and HDMI version 1.3.

The HMX42 can support the following typical applications

• Switching 4 HDMI inputs to 2 displays and 2 home theater receivers
• Integration with the CMX matrix switch to support all video & audio types

CMX compatibility

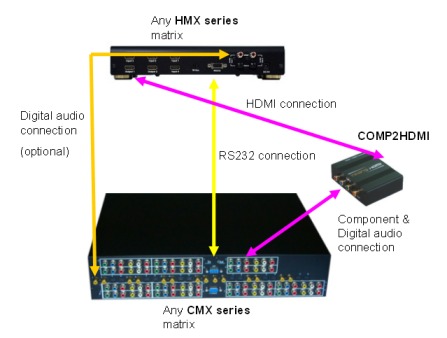

The HMX42 can be used stand alone for HDMI switching, or in conjuction with the CMX series matrix to provide a complete audio and video matrix switching solution.  When connected to the CMX matrix, all device control is handled by the CMX switch.  The HDMI outputs will show up in the CMX control menu as to more controllable outputs.  It is also recommended to connect one or more of the CMX outputs to the HMX inputs (using our component/digital audio to HDMI convertors).  The diagram below illustrates this connection.

HMX manufacturing

The HMX series HDMI products are manufactured by a licensed HDMI adopter for Video Storm.  Video Storm has thoroughly tested these products to meet our standards.  The warranty and technical support is provided by our experienced engineering staff.  For more information, please contact support@video-storm.com.

Unit includes:

• HMX42 HDMI matrix switch
• Product manual
• 5V wall power supply
• Remote control
• IR detector for wired IR
• 1 year warranty

Specifications:

• 4 HDMI 1.3 inputs
• 2 HDMI 1.3 outputs
     Tested to 1080p resolution
     1.65Gbps signal rate
• 2 Digital audio outputs
     Both coax and optical connectors present
     Outputs digital audio present on selected HDMI input
• RS232 control jack (for connection to CMX matrix)
• IR detector on front panel
• Wired IR on rear panel
     IR detector included

• Housing
      Black powder coated aluminum housing  5.1" x 10.5" x 2.2"

Online manual (word document)
